£34.65 (excl. VAT)

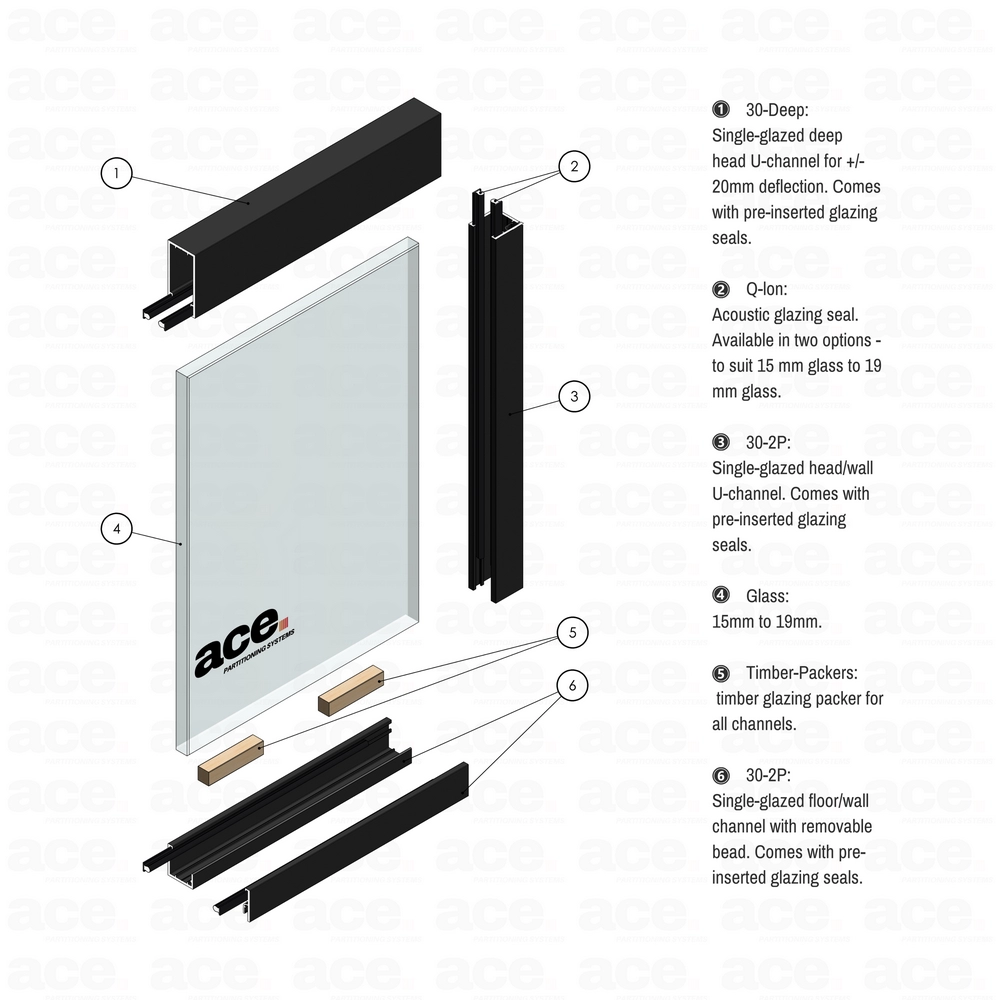

Single-glazed, two-part aluminium profile designed for use as a base and wall channel, measuring 30 mm in width and 25 mm in height. The system is constructed from two components—the 30-chair and 25-bead—allowing for quick and straightforward installation. This 30 mm aluminium U-channel provides a combination of strength, flexibility, and long-term durability, making it particularly suitable for glass partition installations.

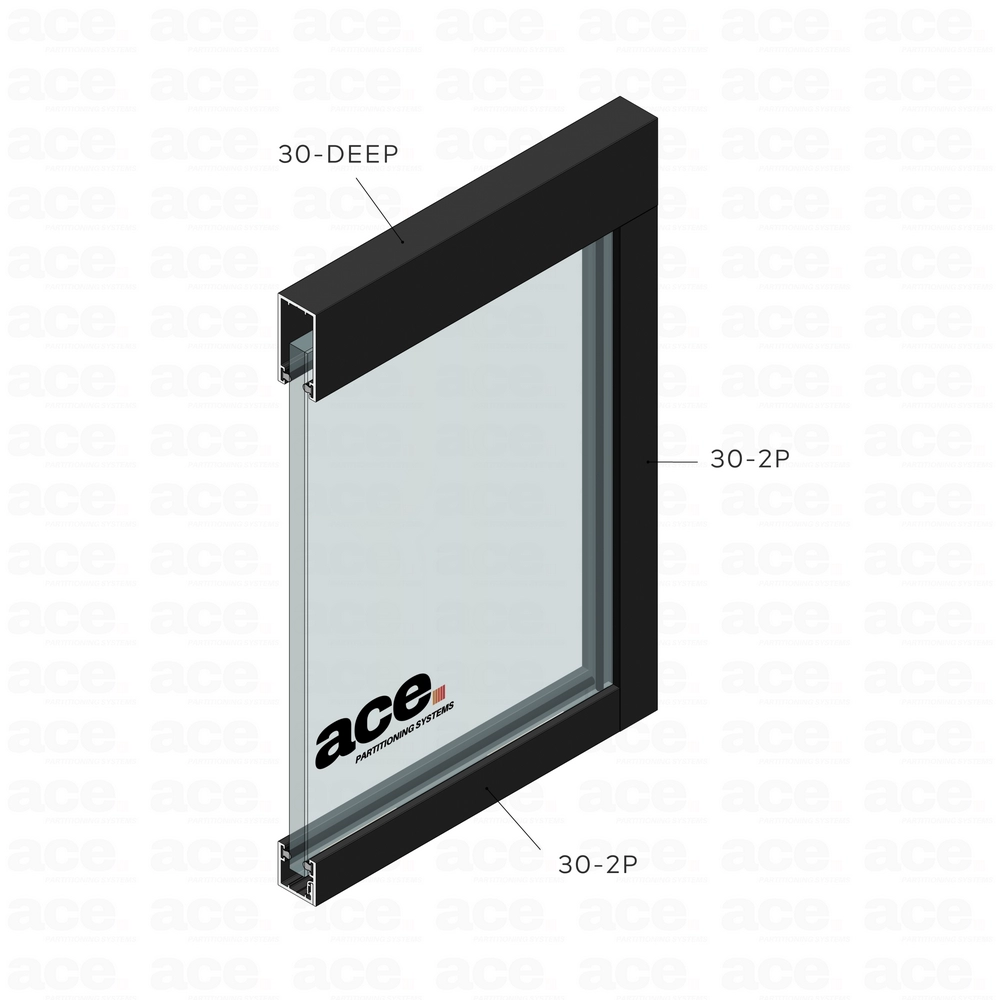

The profile is fitted with a pre-inserted Q-Lon acoustic seal and accommodates glass thicknesses from 15 mm to 19 mm, delivering excellent sound insulation performance. As part of the complete 30 mm aluminium frame system, the 30-2P section is supplied in 3000 mm lengths and is fully compatible with the full range of 30 mm profiles.
This aluminium U-profile is ideal for creating robust, sleek single-glazed installations and can be used across a variety of architectural applications, including glass partitions and modern door systems.
Available in RAL 9005, 9010, 9006, and 7016. Bespoke colours are available on request (POA).
We invite you to view our interactive, online PDF brochure, where you can browse through our entire collection of systems.
GET YOUR CATALOGUE
We are experts in manufacturing of aluminum products for glazed partitions, harnessing a wealth of experience. Our commitment to excellence ensures that we consistently meet our clients’ high expectations, delivering superior quality within the agreed timeframe and budget.
Big Gazza Newcastle –
solid aluminium channels. the 30mm width is perfect for the 18mm glass we use. price is fair for the quality you get and the service is always decent.
User.7741 –
Spoke to the team about a custom color and they were very helpful with the POA process. Great support and the final product was exactly what the architect wanted.
Emma-Louise Jones –
Ordered a batch of the 30-2P sections in RAL 7016 for a recent project. The quality of the finish is great and they arrived well protected. The two part system with the 25-bead is a huge time saver on site compared to older channels. Everything lined up exactly as it should.
london_lad_91 –
Our previous supplier kept sending channels that were slightly warped which made glass fitting a nightmare. Switched to Ace and the 30mm profile is much better quality. We used the RAL 9005 black finish for a shop front and it looks sharp. The glass sits very securely now.
Harry Wilson –
The ordering process was efficient. They had the RAL 9010 in stock and shipped it out the next day. The tracking was accurate and the profiles arrived in perfect condition.
