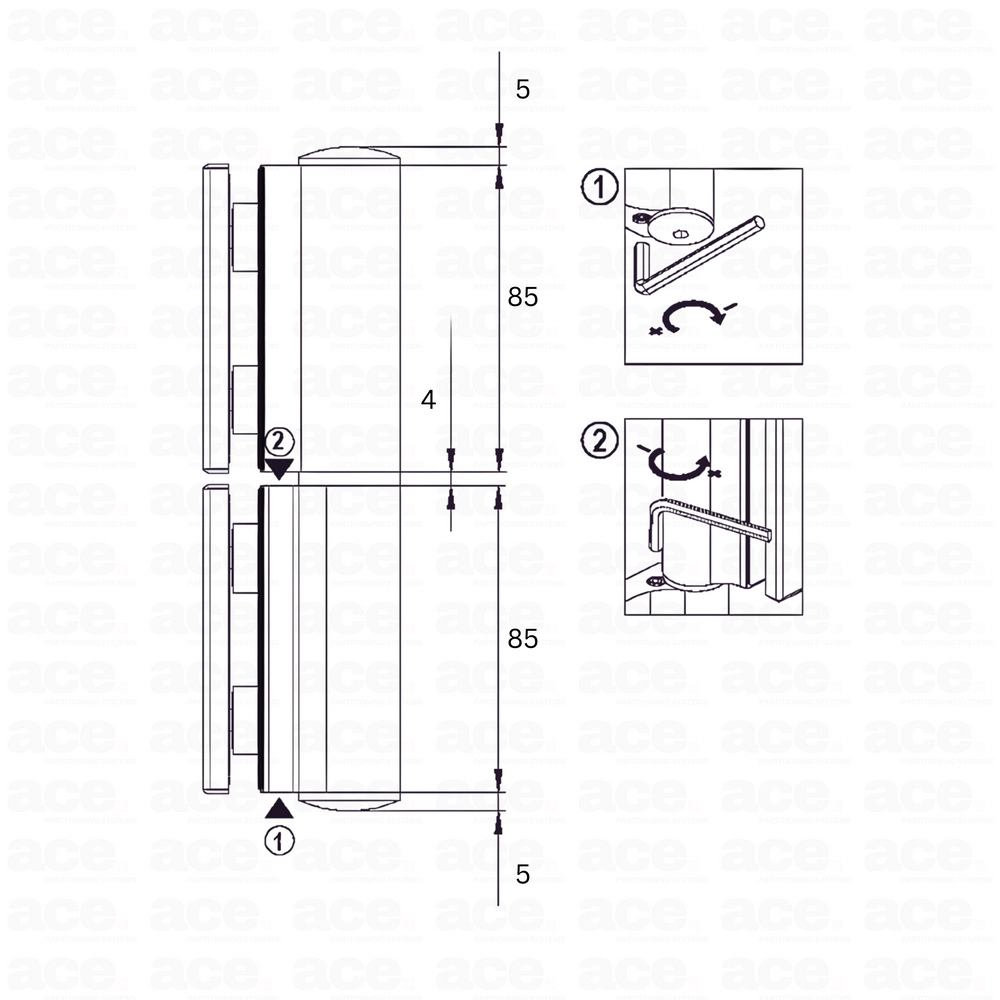

evo glass to glass installation diagram

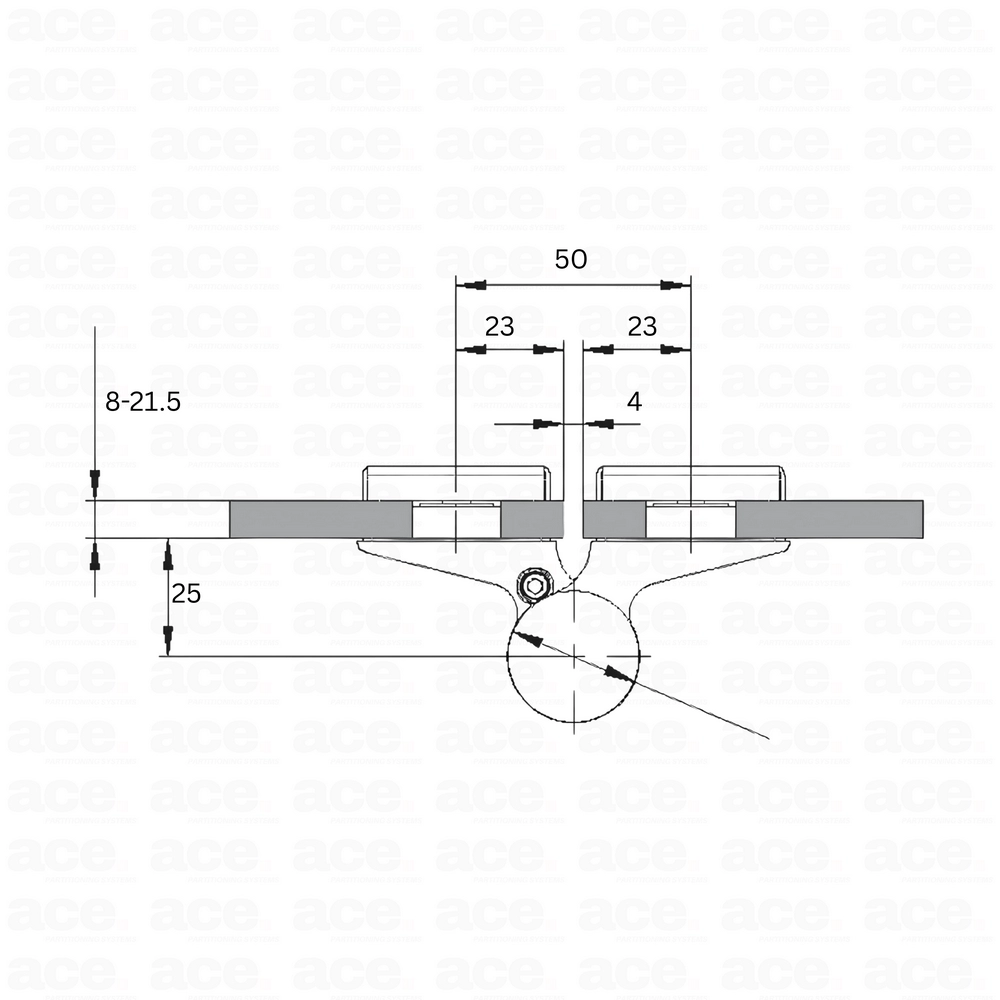

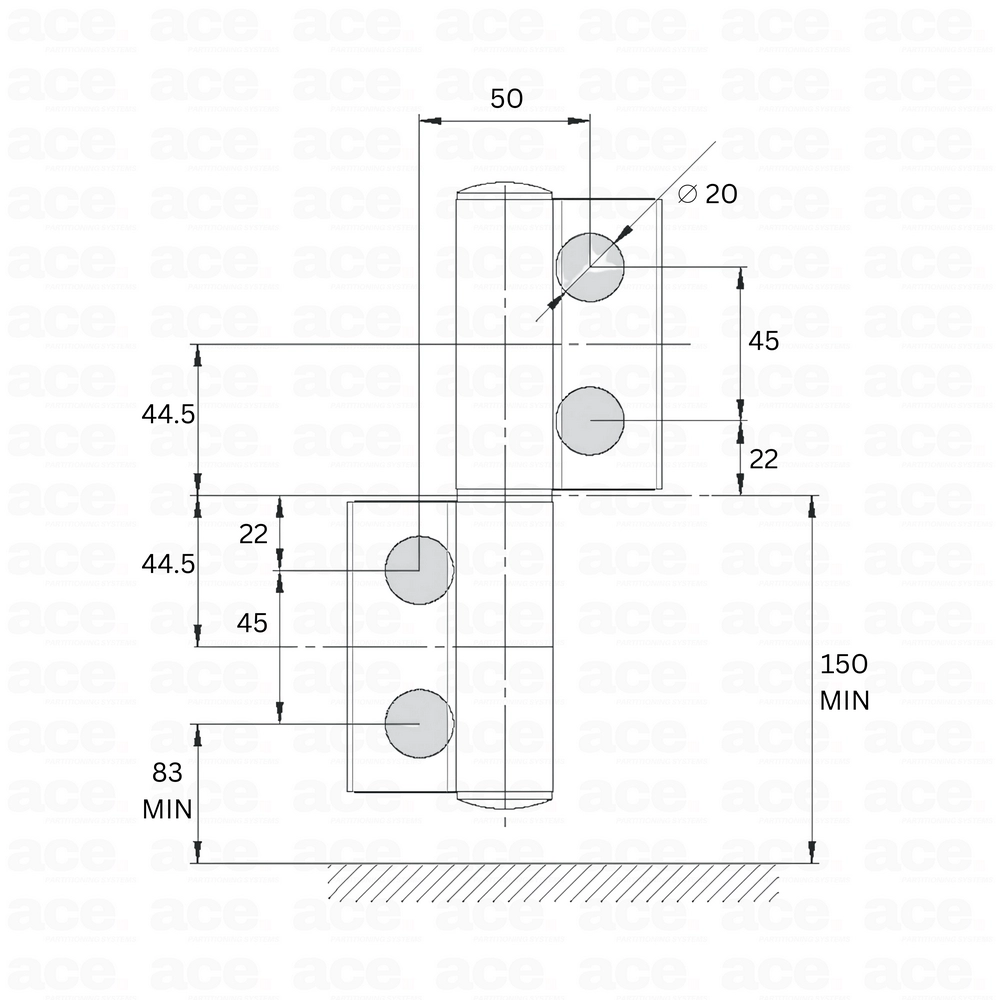

evo glass to glass dimensions diagram

evo glass to glass dimensions diagram

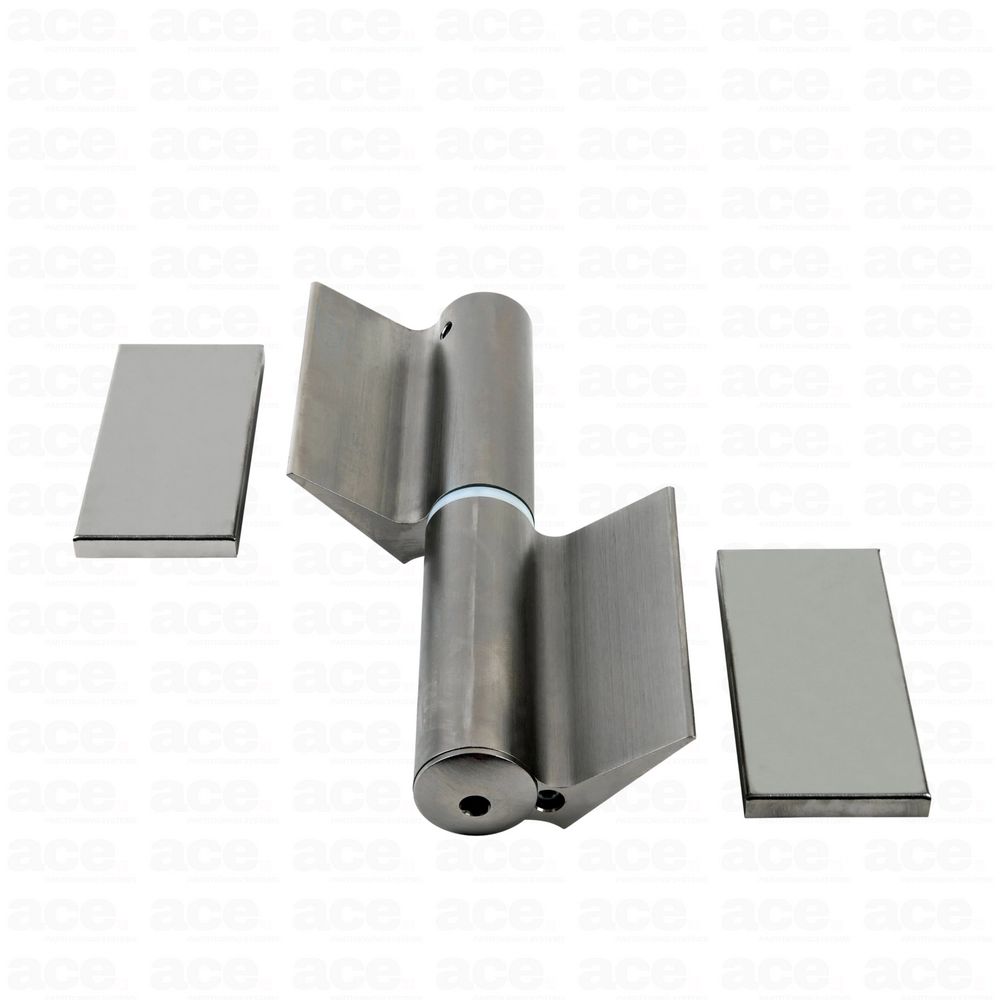

Evo glass to glass

Price range: £112.35 through £180.60 (excl. VAT)

Type

Clear

hydraulic hinge
for use with glass-glass combinations
for single action doors that are protected from severe weather conditions
with closing speed adjustment
with constant braking control
door opens up to 180°
automatic closing from + 80°
glass thickness 8 mm to 21.52 mm
also available as free swinging hinge
load capacity up 120 kg – active hinge or up 100kg – passive hinge
max door width 1200mm – active hinge or 1000mm passive hinge
right or left hand
Brand: Colcom / Simonswerk

5 reviews for Evo glass to glass

Rated 5 out of 5

geordie.gazza.85 – December 17, 2025

needed a specific setup for 15mm toughened glass and ace delivered the simonswerk hydraulic hinges fast. the adjustment for the closing speed is easy to find and the braking control is a lifesaver. really happy with the support on picking the right hand version for my office project.
Rated 5 out of 5

Charlotte Moore – February 18, 2026

This hydraulic hinge is a great alternative to traditional closers. The build is very solid and the finish is excellent. It is easy to adjust the closing speed once the door is hung. It feels very durable and the 120kg capacity is perfect for large commercial doors
Rated 5 out of 5

Noah_Turner_Photo – March 10, 2026

The adjustment on the closing speed is very precise. These hinges handle 12mm glass with ease and the automatic closing from 80 degrees is a very convenient feature for our office.
Rated 5 out of 5

Brighton.Pier.Boi – April 28, 2026

The 180 degree opening is a game changer for our narrow halls. These hinges are very sturdy and the 120kg load capacity handles our large glass doors without any effort.
Rated 5 out of 5

Ruby Phillips – May 13, 2026

works great. very strong and easy to adjust the closing speed.
